Tesa® 51006 Textile adhesive tape 25m long made of PET fabric tape, black

Tesa 51006 Textile adhesive tape 25m long made of PET fabric tape
Colour: black

The Tesa 51006 textile tape is an abrasion-resistant PET fabric tape with a natural rubber adhesive. It is highly heat resistant.

• 19 mm roll width
• Length 25m
• High temperature resistance 150°C / 3000h
• High adhesive strength
• Flexible, rot-proof, highly tear-resistant
• resistant to chemicals.
• Colour: Black
• Standard core diameter: 38 mm
• Can be cut
• Self-adhesive

Main applications:

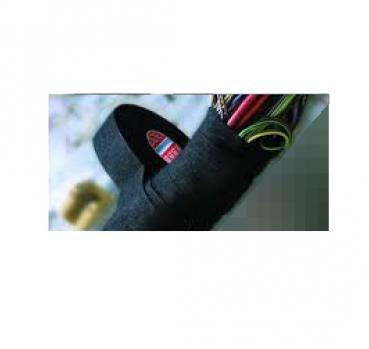

• Wire harness wrapping of manually manufactured engine compartment wire harnesses.
• Bundling and reinforcing cables, cable harnesses (also in the engine compartment)
• Sealing of hoses
• Covering of sharp edges

Technical data:

• Elongation at break: 22
• Adhesive mass: rubber-based
• Abrasion resistance (5mm mandrel): Class B (acc. to LV312)
• Temperature resistance MIN: -40 °C
• Temperature resistance (3000h): 105 °C
• Tear strength: 175 N/cm
• Unwinding force (roll width ≤ 9mm): 6 N/roll (30 m/min)
• Unwinding force (roll width > 9mm): 10 N/roll (30 m/min)
• Thickness:320 µm
• Carrier material: PET fabric
• Adhesion to steel: 4.5 N/cm
• Flame resistance as composite:Class B (acc. to LV312)
• Noise reduction (decibels): Class A (acc. to LV312)
• Abrasion resistance (10mm mandrel): Class C (acc. to LV312)

Processing and storage instructions
Surface condition
Surfaces must be dry, free from dust, oil, oxides, release agents and other contaminants.

Surface cleaning
The following cleaning agents, for example, can be used to remove dust, oil, separating agents and other impurities:

• Isopropanol/water 50/50
• Heptane or ethanol
• Acetone or MEK
• Suitable other cleaning agents that do not leave any residues and do not attack the substrate.

Temperature
The most favourable processing temperature (object and ambient temperature) is between +15°C and +25°C.

Pressure
The strength of the bond is directly dependent on the contact that the adhesive has with the surfaces to be bonded. A short, high pressure (e.g. with a squeegee, pressure roller or pressure device, etc.) ensures good surface contact. The type and amount of pressure depends on the material (thin- or thick-walled, etc.) and the geometry of the components. Rule of thumb: approx. 20 N/cm².

Storage
The rolls should be stored in their packaging protected from light at a temperature between +15°C and +25°C and a relative humidity of 50%.

Note
The technical information is given to the best of our knowledge, but is not binding. The information only has the character of a general recommendation. The suitability of the product for the desired purpose must be ensured by own tests under the original conditions. A legal assurance of certain properties cannot be derived from our information.
