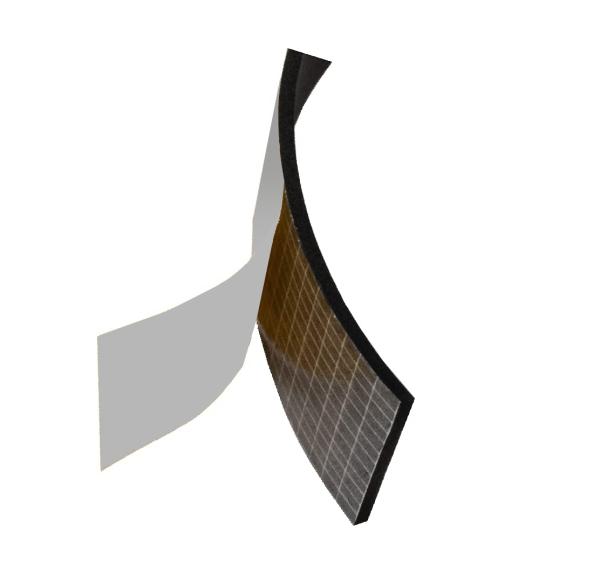

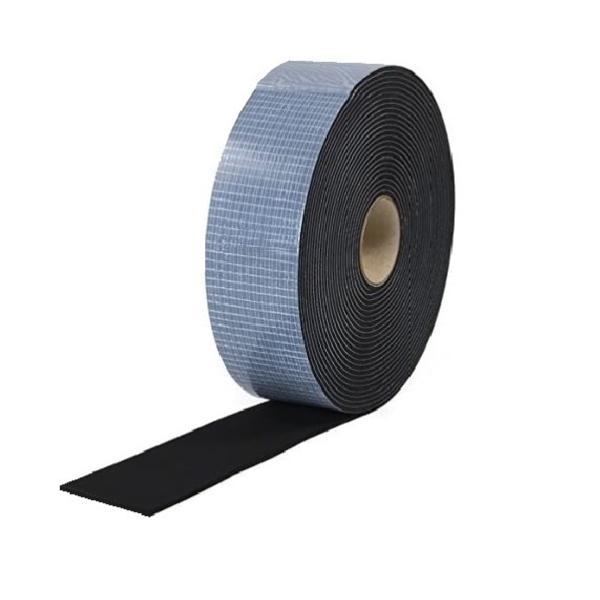

EPDM Premium Sponge Rubber SEALING TAPE Cellular rubber
- one-sided, self-adhesive
- width selectable from 6-100mm
- 5m per roll

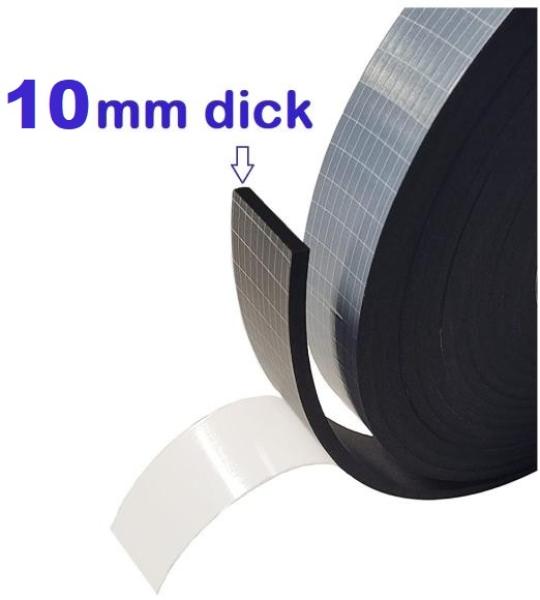

- 10mm thick
- very high adhesion
- ageing/weathering & uv-resistant
- closed-pored
- insulating
- insulating
- reinforced with scrim on the adhesive surface
Self-adhesive sponge rubber sealing tapes are widely used in various furniture, electrical cabinets, cars, speakers, toys, handicrafts, sports equipment, etc. Soundproof, heat resistant, insulated, compressible, impact prevention, anti-friction. This cellular rubber sealing tape has a durable acrylic adhesive for strong adhesion. The compression tape is not only highly adhesive and provides good instant adhesion, it is also temperature resistant from -50°C to +110°C.
Product features
- Carrier: silicone paper
- Adhesive: acrylate
- Width: selectable from 6mm - 100 mm
- Thickness: 6 mm
- Temperature resistance: -50 to +110°C
- Colour: black/anthracite
Possible applications
- Insulation
- Insulating
- Anti-slip
Technical data
- Volume weight: 175 ± 25 kg/m³ (ISO 845)
- Tensile strength: 499 kPa (ISO 1798)
- Elongation at break: 188% (ISO 1798)
- Hardness: Shore00 = 30-50
- Service temperature: -50 to +110 °C
Other technical data
- Compressive strength at 50% compression: according to AWTM D 1056-07-80 corresponds to 35-65 (25 %) kPA
- Compressive strength at 50% compression: according to NF R99211 corresponds to 80-160 (50 %) kPA
- Compression set 22h at 50% compression: according to ASTM D 1056 corresponds to ≤ 25%.
- Vacuum water absorption: according to ASTM D corresponds to 1056 corresponds to ≤ 5%
- Ozone resistance >8h : 20% elongation, 30°C, 200pphm / corresponds to ISO 1431 / no cracks
Burning behaviour
- FMVSS 302 ISO 3795 UL 94 corresponding to ≥ 4 mm
- UL94 corresponding to ≥ 5 mm HBF
Adhesive properties
- Solvent-free acylate dispersion adhesive
- Very high adhesive strength
- Tape thickness approx. 0.06 mm
- Polyester scrim as backing
- PP silicone film as cover sheet
- service temperature -40°C to + 120°C
- Adhesive strength on steel (contact time: 24h) according to DIN EN 1939 - 20N / 25 mm 30N/cm²
- Dynamic shear strength
- Ageing resistance very good
- Plasticiser resistance very good
Processing and storage information
Surface condition
The surfaces must be dry, free of dust, oil, oxides, release agents and other contaminants.
Surface cleaning
The following cleaning agents, for example, can be used to remove dust, oil, release agents and other impurities:
Isopropanol/water 50/50
Heptane or ethanol
Acetone or MEK
Suitable other cleaning agents that do not leave any residues and do not attack the substrate.
Temperature
The most favourable processing temperature (object and ambient temperature) is between +15°C and +25°C.
Pressure
The strength of the bond is directly dependent on the contact that the adhesive has with the surfaces to be bonded. A short, high pressure (e.g. with a squeegee, pressure roller or pressure device, etc.) ensures good surface contact. The type and amount of pressure depends on the material (thin- or thick-walled, etc.) and the geometry of the components. Rule of thumb: approx. 20 N/cm².
Storage
The rolls should be stored in their packaging protected from light at a temperature between +15°C and +25°C and a relative humidity of 50%.
Note
The technical information is given to the best of our knowledge, but is not binding. The information only has the character of a general recommendation. The suitability of the product for the desired purpose must be ensured by own tests under the original conditions. A legal assurance of certain properties cannot be derived from our information.
